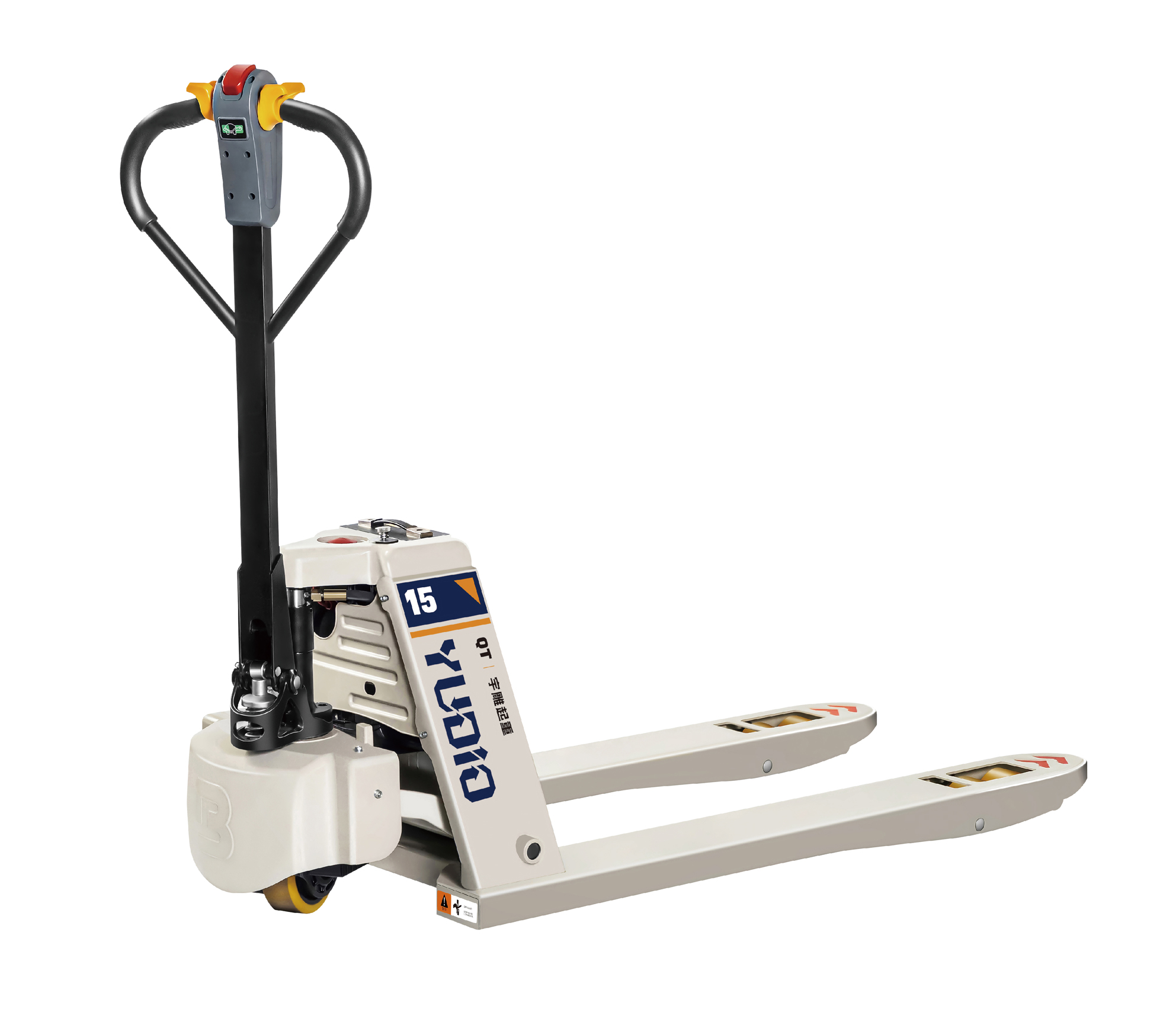

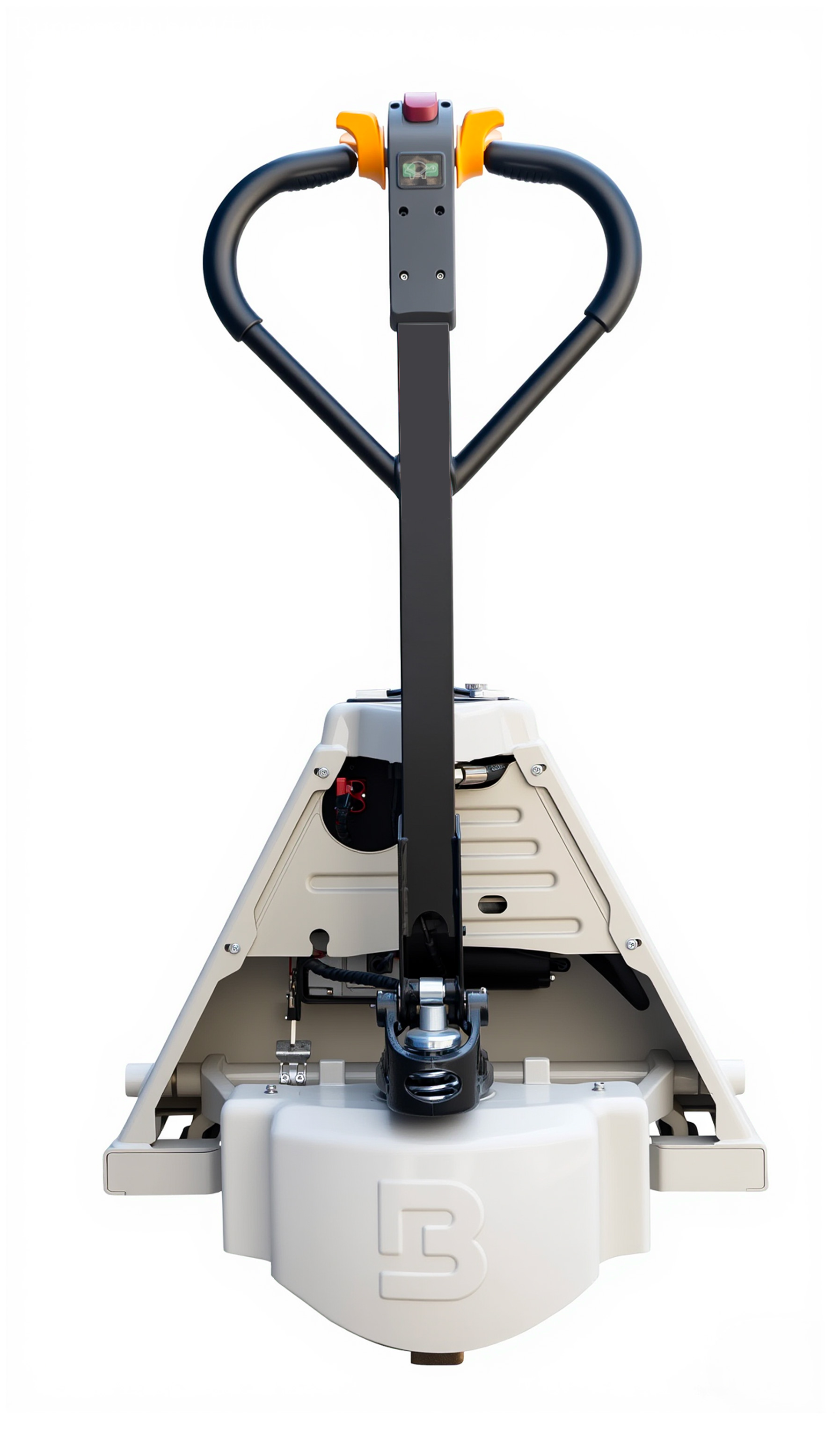

MEWP15/20 series is the best-selling electric pallet truck in its class. Our concept is to make your work simpler and
more efficient. Equipped with the ergonomically designed handle, various sensors and control systems, the machine
can be used in various complex working environments and complete handling tasks under various restrictive conditions.
MEWP15/20 is easy to operate, reduces fatigue and improves work efficiency.
Permanent magnet brushless motor with high electric efficiency, maintenance free.
Good gradient performance.
With smallest turming radius.
Constant traction speed for laden or unladen, improves productive efficiency.
Horizontal drive wheel provides convenient replacement.
Stepless speed control.
| Type sheet for MEWP 15/20 series | |||||||
|---|---|---|---|---|---|---|---|
| Model | MEWP15 | MEWP20 | |||||
| General Info | 1.1 | Power | Lithium-ion Battery | ||||
| 1.2 | Operator type | Pedestrian | |||||
| 1.3 | Load Capacity | Q(kg) | 1500 | 2000 | |||
| 1.4 | Load centre distance | C(mm) | 600 | ||||
| 1.5 | Load distance | X(mm) | 243.5 | ||||
| 1.6 | Wheelbase | Y(mm) | 1197 | ||||
| Weight | 2.1 | Service weight | kg | 114.5 | 117 | ||
| 2.2 | Axle loading, laden front/rear | kg | / | / | / | / | |
| 2.3 | Axle loading, unladen front/rear | kg | / | / | / | / | |
| Tires, chassis | 3.1 | Tire | 聚氨酯轮(PU) | ||||
| 3.2 | Drive wheel* Qty | Φ*w(mm) | Φ160*55 | ||||
| 3.3 | Fork wheels*Qty | Φ*w(mm) | Φ80×70*2 | ||||
| 3.4 | Wheels, number(x=drive wheels) | 1X+/4 | |||||
| 3.5 | Tread, rear | b10(mm) | 390 | 390 | |||
| Dimensions | 4.1 | Lifting height | h3(mm) | 115 | |||
| 4.2 | Height of tiller in drive position min./max. | h14(mm) | 820/1150 | ||||
| 4.3 | Height lowered | h13(mm) | 85 | ||||
| 4.4 | Overall length | l1(mm) | 1552 | ||||
| 4.5 | Length to face of forks | l2(mm) | 402 | ||||
| 4.6 | Overall width | b1(mm) | 550 | 685 | 550 | 685 | |
| 4.7 | Fork dimensions | s/e/l(mm) | 50/160/1150 | ||||
| 4.8 | Width across forks | b5(mm) | 550 | 685 | 550 | 685 | |
| 4.9 | Ground clearance, centre of wheelbase | m2(mm) | 30 | ||||
| 4.10 | Aisle width for pallet 800*1200 lengthways | Ast(mm) | 1687 | ||||
| 4.11 | Aisle width for pallet1000*1200 cross ways | Ast(mm) | 1718 | ||||
| 4.12 | Turning radius | Wa(mm) | 1353 | ||||
| Performance | 5.1 | Travel speed, laden/ unladen | km/h | 4/5 | 4.5/5.2 | ||
| 5.2 | Lift speed, laden/ unladen | mm/s | 15/22 | 15/22 | |||
| 5.3 | Lowering speed, laden / unladen | mm/s | 50/46 | 50/46 | |||
| 5.4 | Gradeability, laden/ unladen | % | 6/20 | 6/20 | |||
| 5.5 | Service brake | Electromagnetic | |||||
| Motors | 6.1 | Drive motor rating S2 60min | kW | 0.85 | 1.0 | ||
| 6.2 | Lift motor rating at S3 7% | kW | 0.80 | 0.80 | |||
| 6.3 | Battery voltage, nominal capacity K5 | V/Ah | 48/10 | 48 /15 | |||
| 6.4 | Battery weight | kg | 4.55 | 5.7 | |||
| 6.5 | Charger | A | 3 | 5 | |||
| 6.6 | Type of drive control | DC - Speed Control | |||||
| 6.7 | Sound level as per En12053 | Db(A) | 69 | ||||
