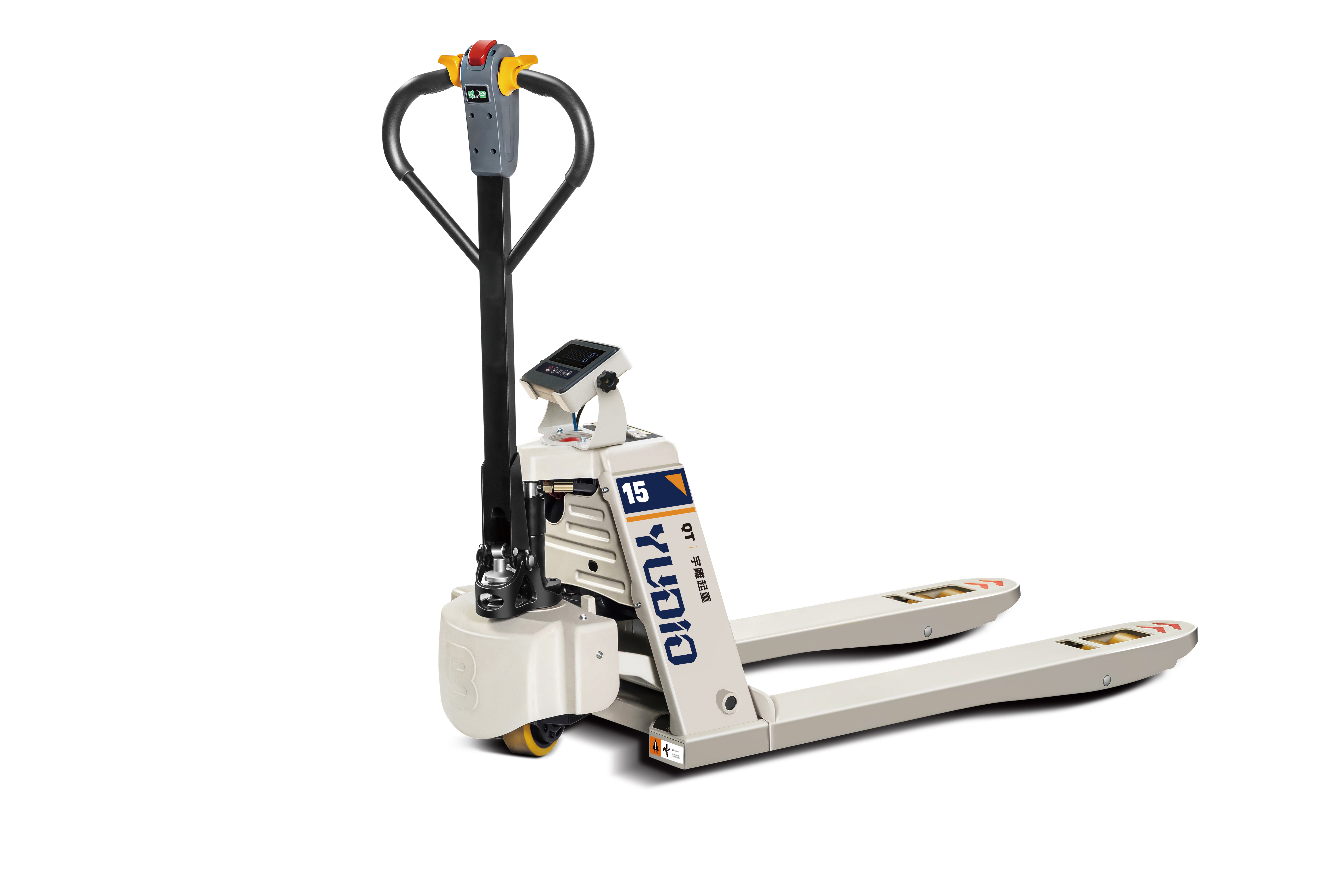

The MEWP-W 15/20 series electronic scale pallet truck is designed for efficient logistics. It integrates an advanced,
high-precision weighing system. Through sophisticated circuit sensors and an intelligent control unit, it can move freely
even in complex working conditions such as narrow aisles, and instantly transmit accurate weight information. It
combines handling and weighing functions, providing a data-driven upgrade solution for material flow.
IP65 dust and water resistance level
Multiple function keys to meet various weighing requirements.
It has dual uses for moving goods and weighing.

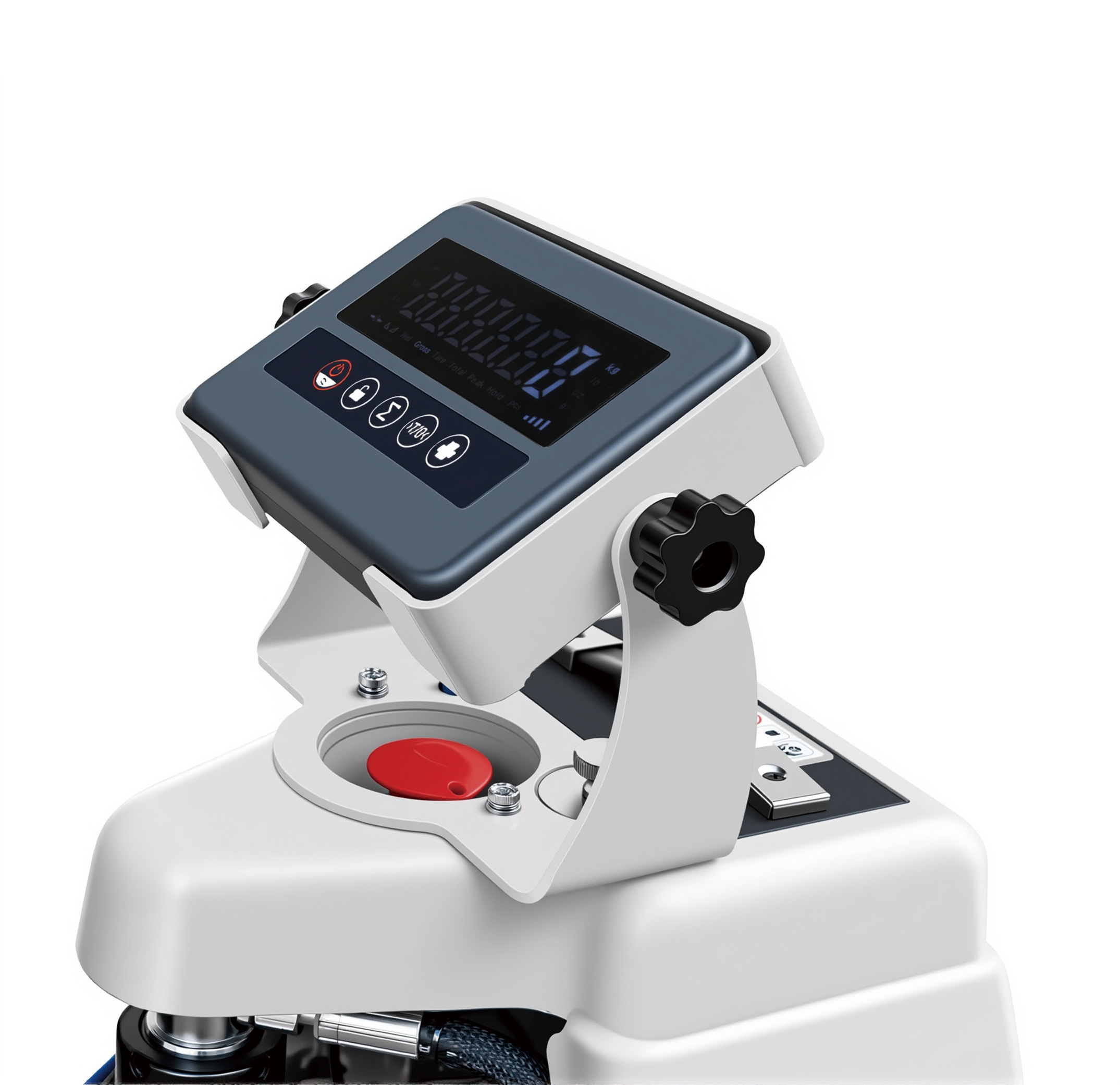

The LED display screen is dominated by numbers and is clearly visible even in strong light.
High-precision electronic scale, with the option of kilograms or pounds as the measurement unit.
Weighing accuracy: ± 01%FS (i.e., one-thousandth of the full scale error).
| Type sheet for MEWP-W 15/20 series | |||||||
|---|---|---|---|---|---|---|---|
| Model | MEWP-W 15 | MEWP-W 20 | |||||
| General Info | 1.1 | Power | Lithium-ion Battery | ||||
| 1.2 | Operator type | Pedestrian | |||||
| 1.3 | Load Capacity | Q(kg) | 1500 | 2000 | |||
| 1.4 | Load centre distance | C(mm) | 600 | ||||
| 1.5 | Load distance | X(mm) | 243.5 | ||||
| 1.6 | Wheelbase | Y(mm) | 1197 | ||||
| Weight | 2.1 | Service weight | kg | 145 | 147 | ||
| 2.2 | Axle loading, laden front/rear | kg | / | / | / | / | |
| 2.3 | Axle loading, unladen front/rear | kg | / | / | / | / | |
| Tires, chassis | 3.1 | Tire | PU | ||||
| 3.2 | Drive wheel* Qty | Φ*w(mm) | Φ160*55 | ||||
| 3.3 | Fork wheels*Qty | Φ*w(mm) | Φ80×70*2 | ||||
| 3.4 | Wheels, number(x=drive wheels) | 1X+/4 | |||||
| 3.5 | Tread, rear | b10(mm) | 390 | 390 | |||
| Dimensions | 4.1 | Lifting height | h3(mm) | 115 | |||
| 4.2 | Height of tiller in drive position min./max. | h14(mm) | 820/1150 | ||||
| 4.3 | Height lowered | h13(mm) | 85 | ||||
| 4.4 | Overall length | l1(mm) | 1565 | ||||
| 4.5 | Length to face of forks | l2(mm) | 402 | ||||
| 4.6 | Overall width | b1(mm) | 550 | 685 | 550 | 685 | |
| 4.7 | Fork dimensions | s/e/l(mm) | 50/160/1150 | ||||
| 4.8 | Width across forks | b5(mm) | 550 | 685 | 550 | 685 | |
| 4.9 | Ground clearance, centre of wheelbase | m2(mm) | 30 | ||||
| 4.10 | Aisle width for pallet 800*1200 lengthways | Ast(mm) | 1687 | ||||
| 4.11 | Aisle width for pallet1000*1200 lengthways | Ast(mm) | 1718 | ||||
| 4.12 | Turning radius | Wa(mm) | 1353 | ||||
| Performance | 5.1 | Travel speed, laden/ unladen | km/h | 4/5 | 4.5/5.2 | ||
| 5.2 | Lift speed, laden/ unladen | mm/s | 15/22 | 15/22 | |||
| 5.3 | Lowering speed, laden / unladen | mm/s | 50/46 | 50/46 | |||
| 5.4 | Gradeability, laden/ unladen | % | 6/20 | 6/20 | |||
| 5.5 | Service brake | Electromagnetic | |||||
| Motors | 6.1 | Drive motor rating S2 60min | kW | 0.85 | 1.0 | ||
| 6.2 | Lift motor rating at S3 7% | kW | 0.80 | 0.80 | |||
| 6.3 | Battery voltage, nominal capacity K5 | V/Ah | 48/10 | 48 /15 | |||
| 6.4 | Battery weight | kg | 4.55 | 5.7 | |||
| 6.5 | Charger | A | 3 | 5 | |||
| 6.6 | Type of driver control | DC - Speed Control | |||||
| 6.7 | Sound level as per En12053 | Db(A) | 69 | ||||
| 7.1 | The weighing accuracy of electronic scales | ± 01%FS | |||||
