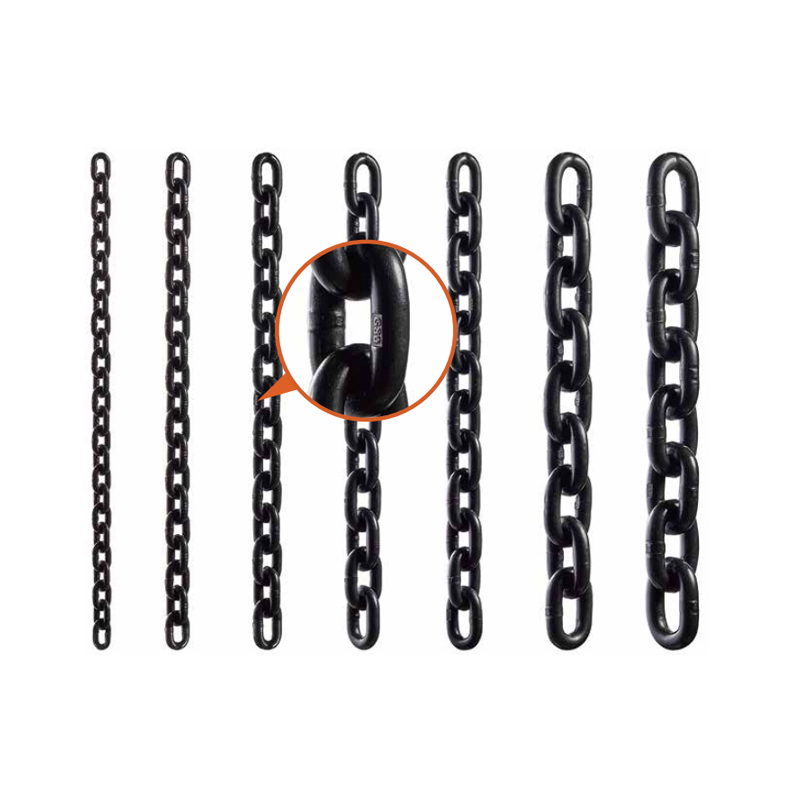

High-tensile G80 Lifting Chain/Load Chain
  • The G80 Lifting Chains are made of high-quality low-carbon alloy after heat treatment to ensure the excellent impact resistance, load capacity, toughness and elongation, greatly improving its safety and service life.
  • The special grade of alloy steel chain is ideal for overhead lifting due to their high strength and abrasion resistance, as well as their ability to stretch up to 20% before breaking when subjected to overloading.
Technical Parameter
Size d*p (MM)
Width(MM)
Min Inside Max Outside
Weight
(KG/M)		 W.L.L
(T)		 Test Load
(KN)		 Breaking Load Min
(KN)
6x18 7.5 21 0.79 1.1 27 45.2
8x24 10 28 1.38 2 48 80.4
10x30 12.5 35 2.2 3.2 76 126
12x36 15 42 3.1 4.6 109 180.9
13x39 16.3 46 3.8 5 128 212
16x48 20 56 5.63 8 192 322
18x54 23 63 6.85 10 246 407
20x60 25 70 8.6 12.5 300 503
22x65 28 74.2 10.7 15.3 366 608
26x78 35 91 14.87 21.3 510 850
30x90 38 105 19.6 28.3 678 1130
32x96 40 106 22.29 32.2 772 1286
34x126 38 109 22.7 36.3 870 1450
42x126 55.5 144.5 38.6 55.4 1332 2200
